BTSMX Smart Permanent Outdoor Lights

Device Type:

Electrical Standard:

Board:

General Notes

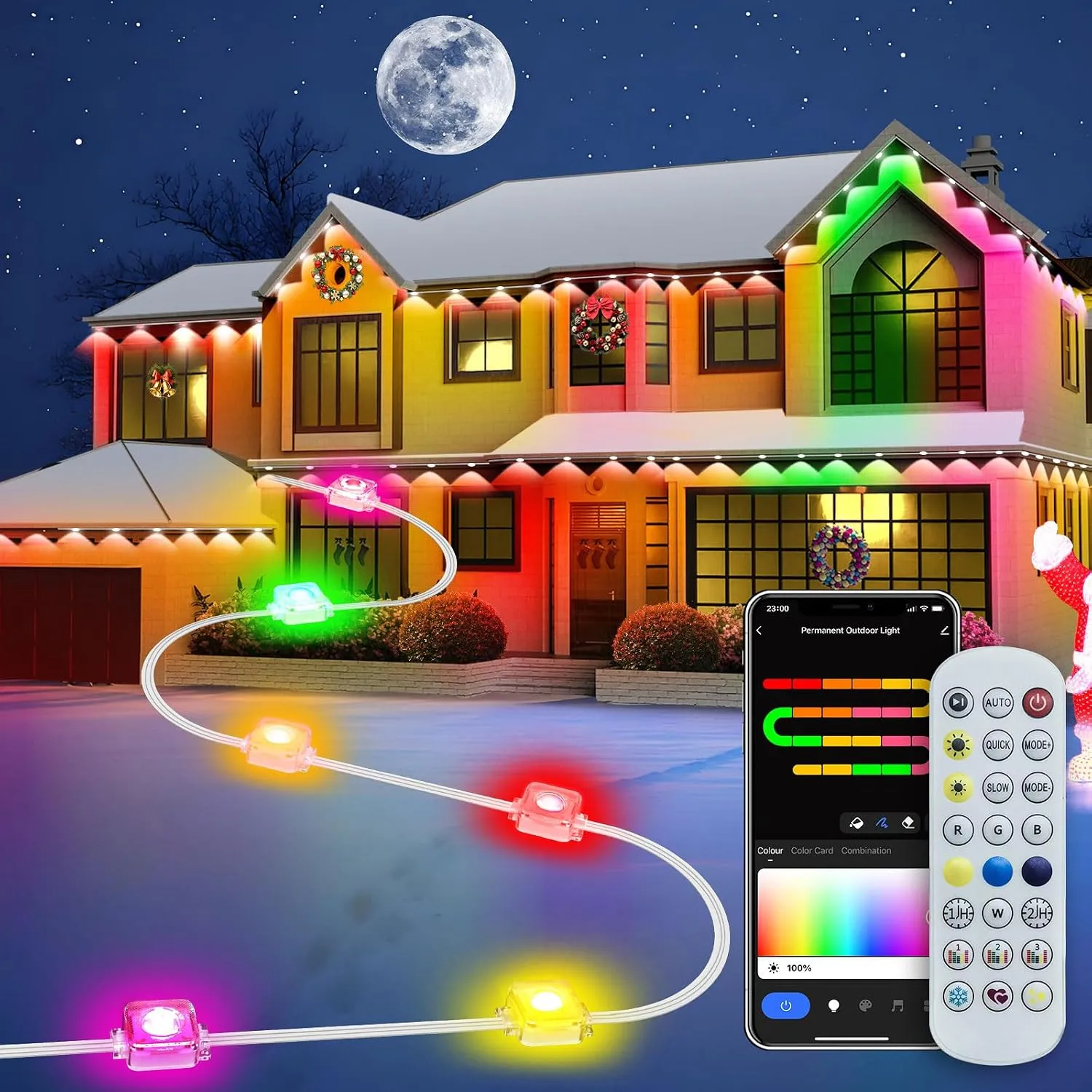

This setup was modeled after the BTSMX Outdoor LED String Lights which are advertised as Tuya/SmartHome compatible with RGB+IC addressing. Many other such clones are likely compatible with this setup, since the box has absolutely no branding.

The control board was potted over with silicone, but only the back needs to be cleaned off for flashing with LibreTiny.

Basic Configuration

https://github.com/esphome/devices.esphome.io/blob/main/src/docs/devices/btsmx-smart-permanent-outdoor-lights/config.yaml

# Board: Generic - BK7238 (Tuya T1)
esphome:
  name: led_strip
  friendly_name: LED Strip

bk72xx:
  board: generic-bk7238-tuya

logger:

wifi:
  ap:

mdns:

power_supply:
  - id: led_power
    pin: P6

light:
  - platform: beken_spi_led_strip
    name: "LED Strip"
    pin: P16
    chipset: SM16703
    num_leds: 24
    rgb_order: RBG
    power_supply: led_power
    effects:
      - random:
      - pulse:
      - strobe:
      - flicker:
      - addressable_rainbow:
      - addressable_color_wipe:
      - addressable_scan:
      - addressable_twinkle:
      - addressable_random_twinkle:
      - addressable_fireworks:
